MEC80
80 kVA isolated bidirectional GaN converter module.
A single 2U building block that converts between a 1500 V DC port and a 1000 V AC or DC port, and stacks into megawatt scale systems.
Advance information. Every figure on this page is a design target derived from detailed simulation and ongoing prototype characterization, not a measurement of a released product. Values may change without notice and do not constitute a warranty of performance. The compliance standards listed are certification targets and the product is not yet certified.
What it does
The MEC80 is a galvanically isolated, bidirectional 80 kVA converter module built on gallium nitride switching at up to 1 MHz. One module converts between a 0 to 1500 V DC port and a 0 to 1000 V AC or DC port through a high frequency isolation stage, which replaces the line frequency transformer along with its size, weight and losses.
Modules are designed for series stacking. With fiber isolated EtherCAT control and full galvanic isolation, stacks reach system voltages of tens of kV for solid state transformer applications, while single modules serve as compact building blocks for battery storage, electrolysis, fuel cells and solar conversion.

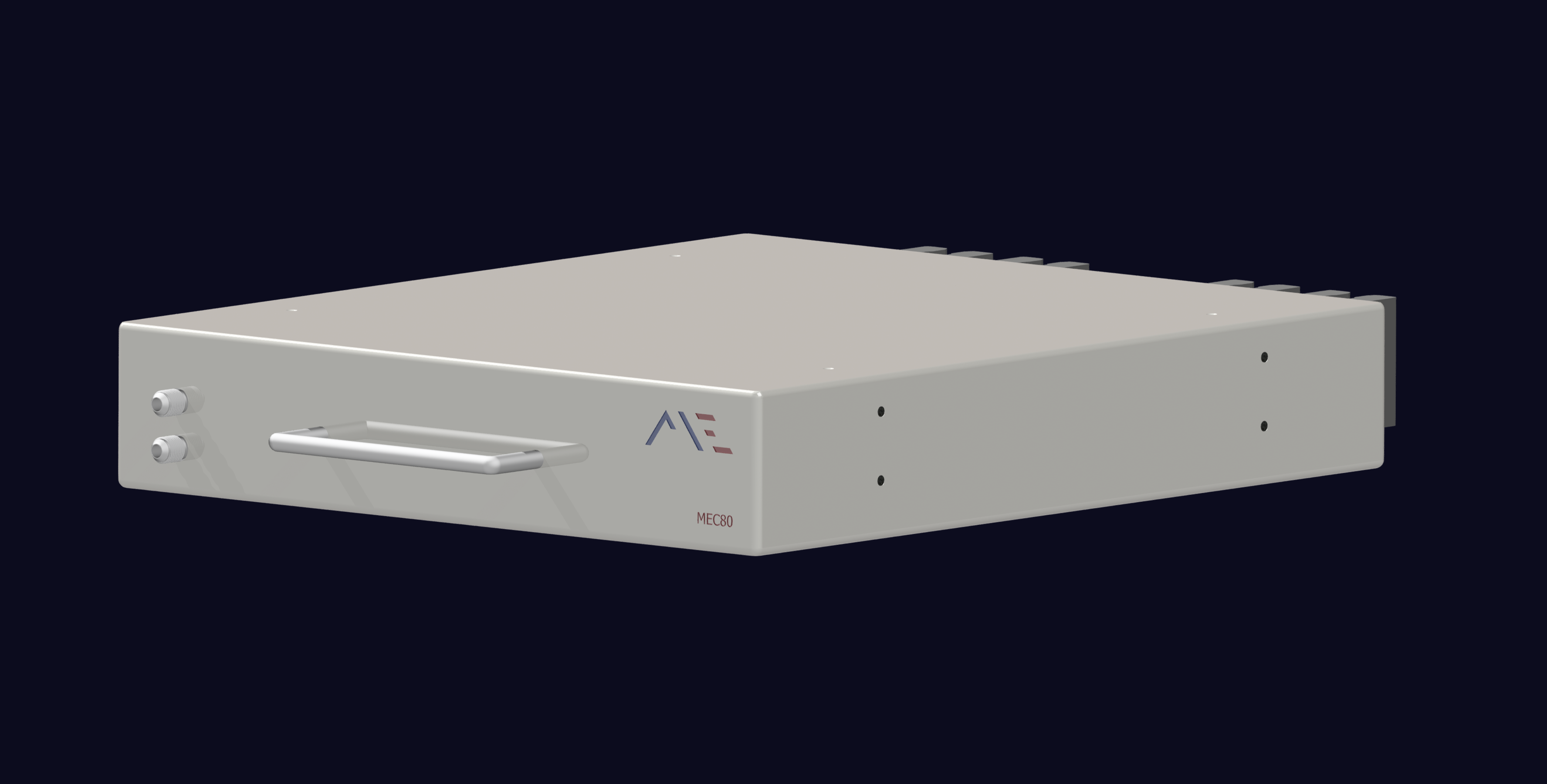

The sealed, fanless enclosure is liquid cooled through two coolant fittings and fits a standard 19″ rack at 2U height. There are no filters, fans or scheduled service items.
From one module to a three phase transformer

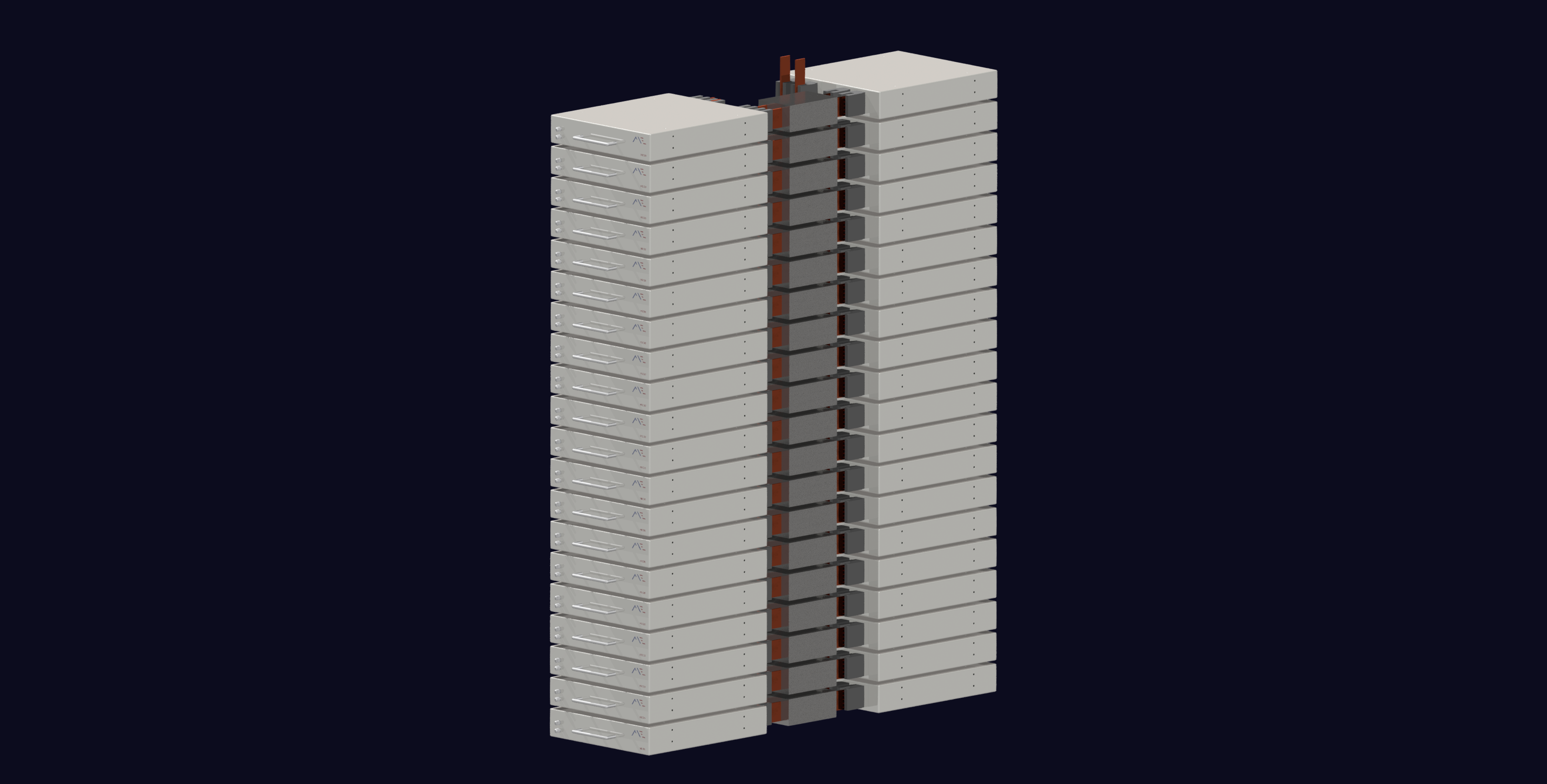

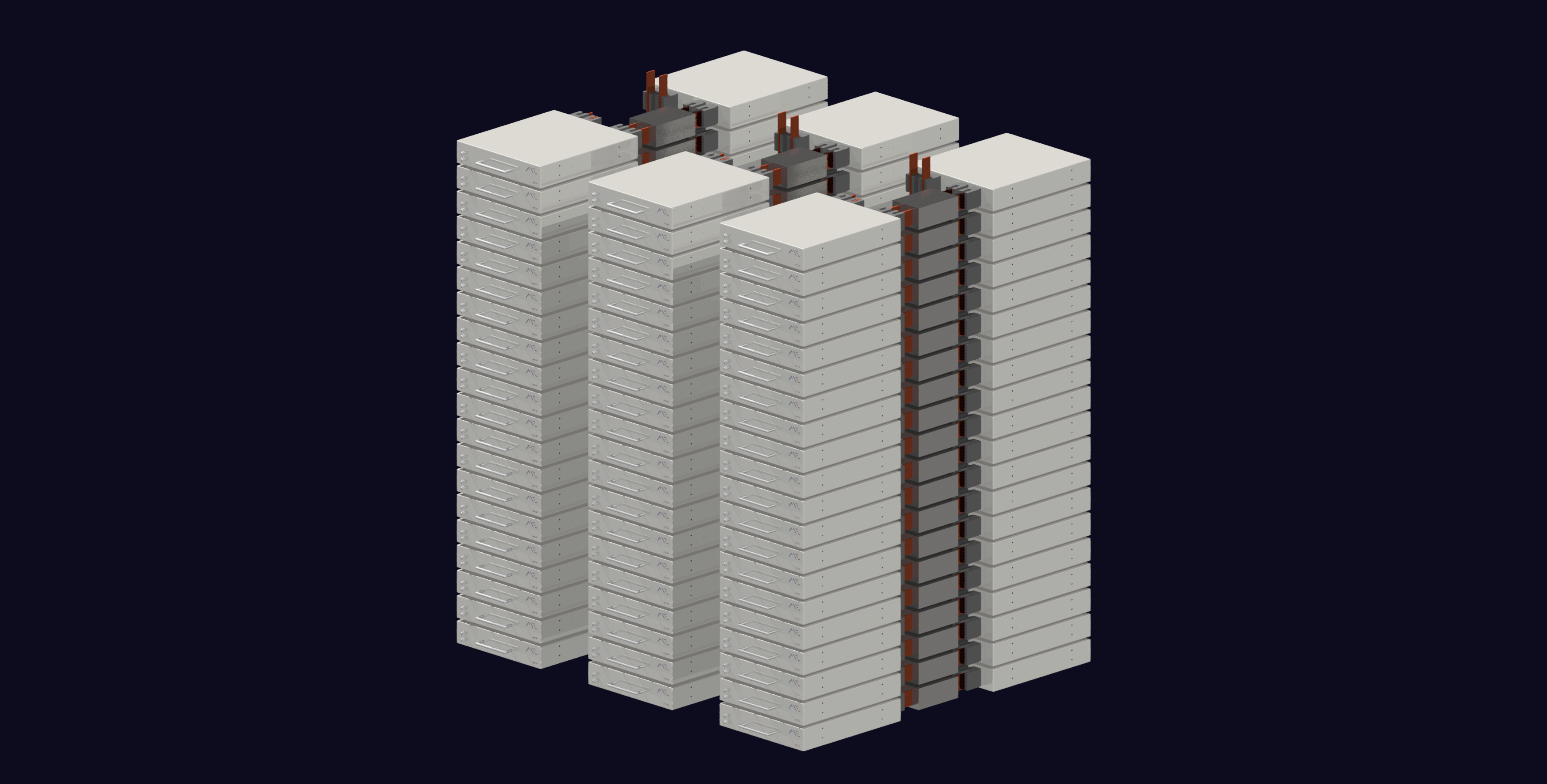

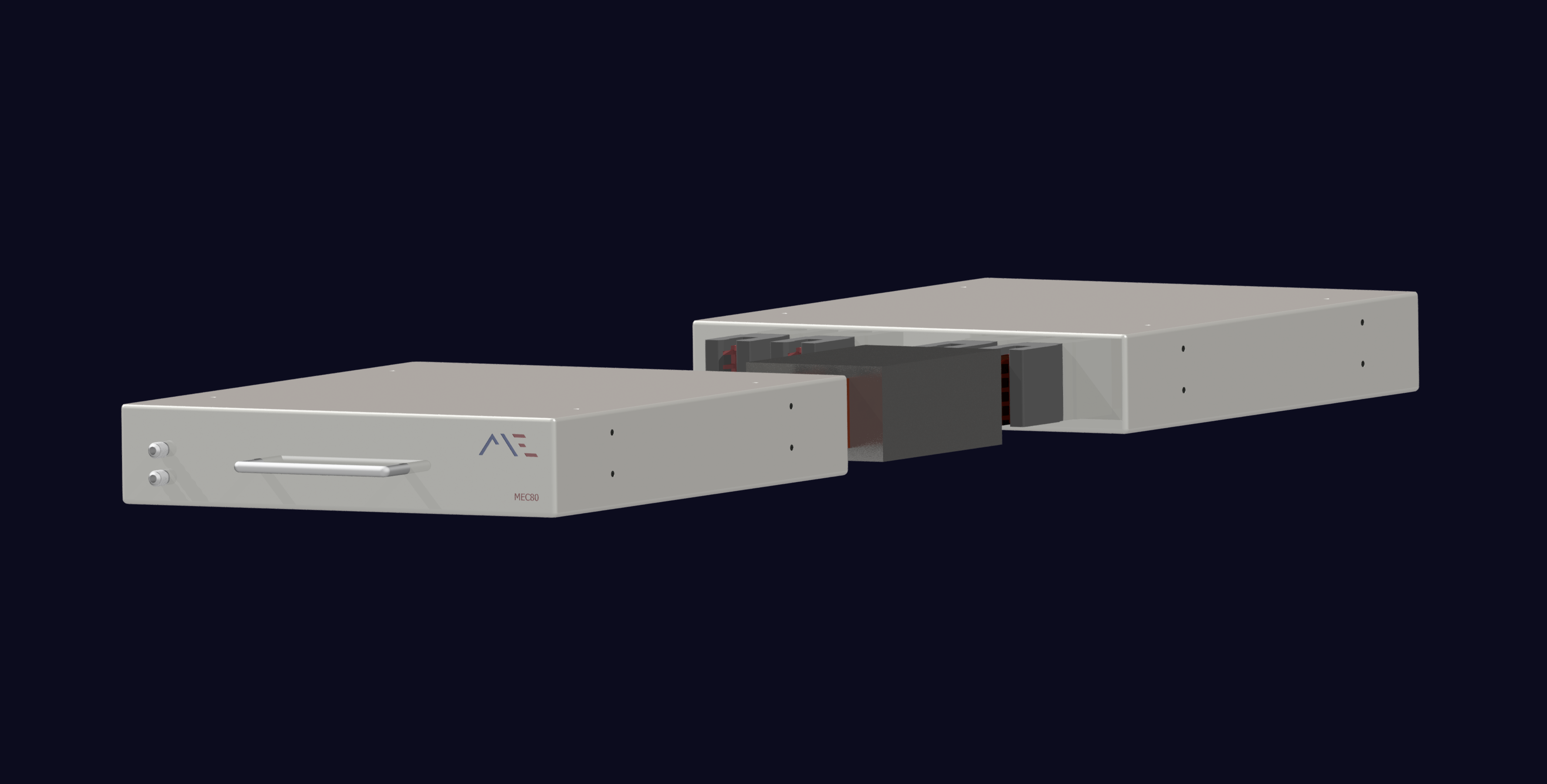

The same module is the unit of scale. Twenty of them on common busbars make a 1.6 MVA rack, and three of those racks make a 4.8 MVA three phase solid state transformer.
Applications
- Battery energy storage and battery buffered EV charging
- Electrolysis and fuel cell power conversion
- Solid state transformers, stackable to tens of kV
- Solar string inverters and DC collection grids
- Data center power distribution
Features
- 80 kVA bidirectional, four quadrant operation, power factor 0 to 1
- Galvanic isolation via high frequency transformer stage
- GaN power stage, switching up to 1 MHz
- 98.7 % peak efficiency and current THD below 1 %, both design targets
- Full LVRT and frequency response for grid connected use
- EtherCAT control with fiber optic isolation and multi module synchronization
- Liquid cooled, fanless, no scheduled maintenance
- Rear plug-in power connections for fast module exchange
Specifications
DC port
- Voltage range
- 0 to 1500 V DC
- Maximum current
- 85 A
- Maximum power
- 80 kW, bidirectional
AC port
- Voltage range
- 0 to 1000 V AC
- Maximum current
- 63 A RMS
- Power factor
- 0 to 1, four quadrant
- Current THD
- < 1 %
- Grid support
- Full LVRT and frequency response
Conversion stage
- Topology
- Isolated GaN power stage, high frequency transformer
- Switching frequency
- Up to 1 MHz
- Peak efficiency
- 98.7 % (target)
- Maximum dissipation
- ≈ 1200 W at full load
Isolation and stacking
- Isolation
- Galvanic, HF transformer stage
- Series stacking
- Multi module stacks to tens of kV system voltage
- Isolation test voltage
- To be confirmed
Control and communication
- Fieldbus
- EtherCAT
- Physical interface
- Fiber optic, galvanically isolated
- Stack operation
- Synchronized multi module control
- Protection
- Overcurrent, overvoltage, overtemperature
Mechanical and cooling
- Dimensions (H × W × D)
- 89 × 480 × 520 mm (2U, 19″ rack)
- Weight
- 12 kg
- Cooling
- Liquid, fanless, sealed enclosure
- Coolant connections
- 2× front panel fittings
- Power connections
- Rear plug-in connectors
- Maintenance
- None scheduled
Environment
- Operating temperature
- −20 to +55 °C
- Humidity, altitude
- To be confirmed
Compliance (design targets)
- Marking
- CE
- Safety
- EN IEC 62477-1
- EMC
- EN IEC 61000-6-2, EN IEC 61000-6-4
- Grid connection
- EN 50549-1 / -2
Availability
- Status
- In development, advance information
- Evaluation units
- By arrangement, contact Maskinel
- Datasheet
- MEC80-DS Rev 0.1, August 2026
